FusionServer 2288H V6 V7 2.1GHz Intel Xeon Processor Rack Server
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | Xfusion |
| Model Number: | xfusion 2288H V6 |
Payment & Shipping Terms:
| Price: | $1,200.00 - $2,500.00/pieces |
|---|---|
| Delivery Time: | Normally 1-2 working days after PO and payment received |
| Payment Terms: | T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow |
|
Detail Information |
|||
| Products Status: | Stock | Type: | Rack |
|---|---|---|---|
| Processor Main Frequency: | 2.1GHz | Processor Type: | Intel Xeon |
| Product Name: | FusionServer 2288H V6 | Status: | Stock |
| Model: | 2288H V6 | Form Factor: | 2U Rack Server |
| MOQ: | 1 PCS | Processor: | Intel Xeon |
| Warranty: | 3 Years | ||
Product Description
Product Intrduction

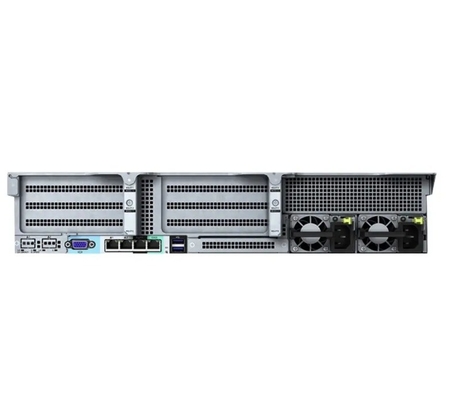

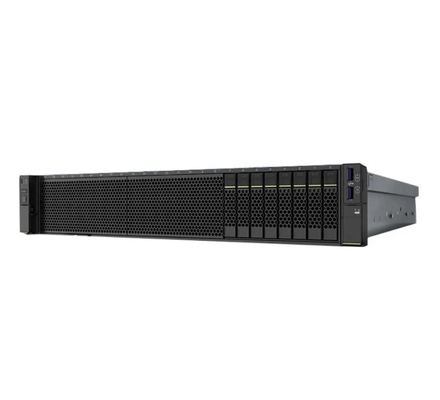

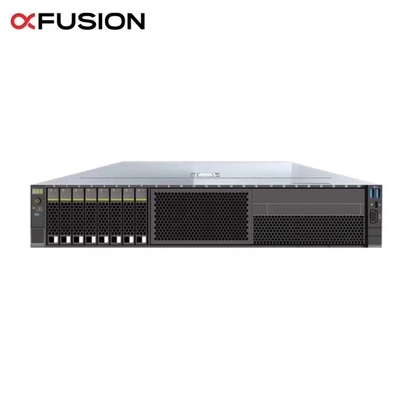

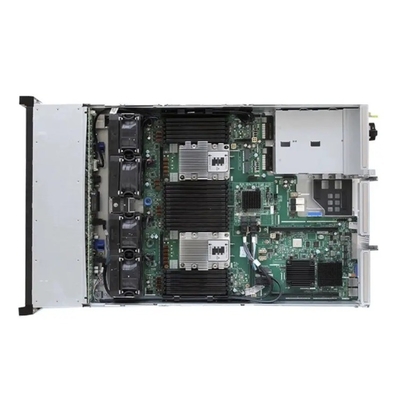

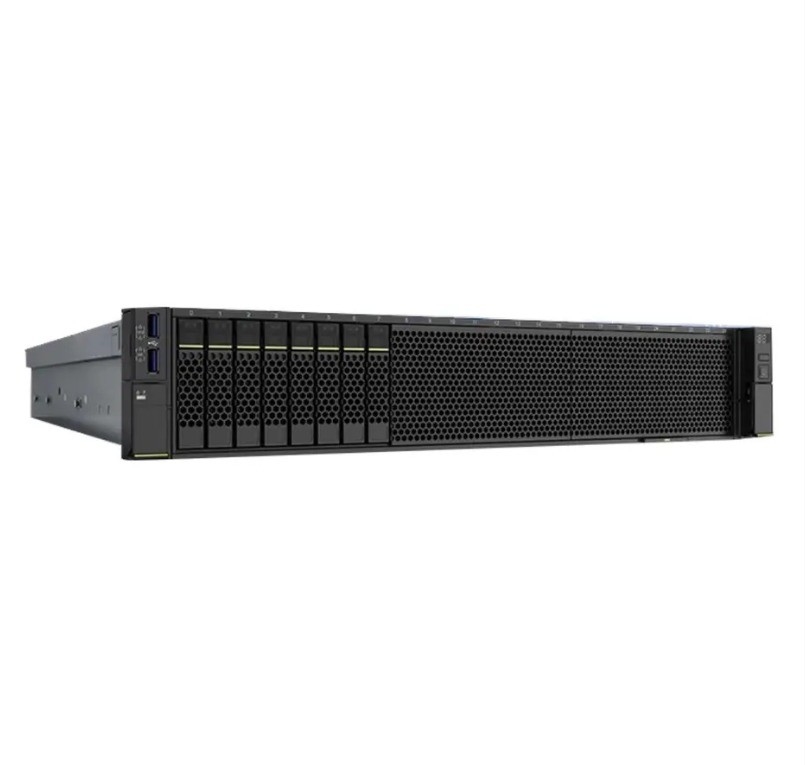

FusionServer 2288H V6 Rack Server
We have large amount in stock with different configuration , please contact me for your demand ! The configuration can be customized according to your demand !
The FusionServer 2288H V6 is a 2U 2-socket rack server with flexible configurations and can be widely used in cloud computing,
virtualization, databases, and big data. The 2288H V6 is configured with two Intel® Xeon® Scalable processors, 16/32 DDR4 DIMMs,
and 14 PCIe slots, providing large-capacity local storage resources. It incorporates patented technologies, such as DEMT and FDM,
and integrates FusionDirector software for entire-lifecycle management, helping customers drive down OPEX and improve ROI.
virtualization, databases, and big data. The 2288H V6 is configured with two Intel® Xeon® Scalable processors, 16/32 DDR4 DIMMs,
and 14 PCIe slots, providing large-capacity local storage resources. It incorporates patented technologies, such as DEMT and FDM,
and integrates FusionDirector software for entire-lifecycle management, helping customers drive down OPEX and improve ROI.
|
MODEL
|
Huawei FusionServer 2288H V6
|
|
Form Factor
|
2U rack ser
|
|
Processor
|
2 or 4 x 3rd Gen Intel® Xeon® Scalable processors (5300/6300/8300 series), TDP up to 250 W
|
|
Memory
|
48 DDR4 DIMM slots, up to 3200 MT/s; up to 24 Intel® Optane™ PMem modules (200 series), 2666 MT/s
|
|
Local Storage
|
Supports hot-pluggable drives with the following configuration options:
• 8 x 2.5” front SAS/SATA/NVME drives • 24 x 2.5” front SAS/SATA drives • 25 x 2.5” front SAS/SATA drives • 4 x 2.5” front SAS/SATA drives and 8 x 2.5” NVMe SSDs • 4 x 2.5” front SAS/SATA drives and 16 x 2.5” NVMe SSDs Flash storage: • 2 x M.2 SSDs |
|
RAID
|
RAID 0, 1, 5, 50, 6, or 60; optional supercapacitor for cache power-off protection; RAID-level migration, drive roaming,
self-diagnosis, and web-based remote configuration |
|
PCIe Expansion
|
Up to 11 PCIe 3.0 slots, including one dedicated PCIe slot for the OCP 3.0 NIC
|
|
Heterogeneous Accelerator Card
|
2 dual-slot FHFL or 4 single-slot HHHL GPU heterogeneous accelerator cards
|
|
Fan Module
|
6 hot-swappable fan modules in N+1 redundancy mode
|
|
PSU
|
2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options:
• 3000 W AC Titanium PSUs 2500 W (input: 200 V to 220 V AC) 2900 W (input: 220 V to 230 V AC) 3000 W (input: 230 V to 240 V AC) • 2000 W AC Platinum PSUs 1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC) 2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC) • 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC) • 1500 W HVDC PSUs (input: 260 V to 400 V AC) • 1500 W 380V HVDC PSUs (input: 260 V to 400 V DC) |
|
Management
|
• BMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis,
automated O&M, and hardware security hardening. • BMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC KVM; supports CD-free deployment and the Agentless feature for smart and simplified management. • (Optional) Configured with the FusionDirector management software to provide advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling automatic entire-lifecycle management |
|
Operating Temperature
|
5ºC to 45ºC (41ºF to 113ºF), and ASHRAE A3 and A4 compliant
|
|
Dimensions (H x W x D)
|
Chassis: 86.1 mm x 447 mm x 790 mm (3.39 in. x 17.60 in. x 31.10 in.)
|
|
Installation Suite
|
L-shaped guide rails, adjustable guide rails, and holding rails
|
Company Profile
Pro-Digital Technolog Limited, a company based in Beijing is the cooperative agent of five major brands ,the main business goes in selling servers, storages, workstations ,switches, routers, firewalls, network modules, processors, hard disks, memories, wireless Aps, IP phones.
We can guarantee to provide 100% original equipment. We hold an excellent execution team, fast delivery and competitive prices are our strengths. We have 3 large stocks cover an area of 1,500 square meters. Cooperative partners of company range in various industries all over the world. Company insists the business principles of customers supreme, services prior, reciprocity and mutual benefit and standing with these principles we strengthen the connection and cooperation with various industries, and in the way of closely communicating with customers and exploring a wide trading market, we provide customer a good and assured shopping process, which save costs and time for customers. We sincerely welcome you to join us!
Q: Why choose us? A: First, quality assurance: We are the agent of five brands, ensuring to provide 100% original authentic products and Competitive Price with best service Second, fast delivery: We have 3 large stocks over than 1500 square meter in Beijing, warehouse with good, prompt shipment arrangement. Third, After-sale service :We have a well-trained after-sales service team can provide strict quality control and considerate customer service, ensure complete customer satisfaction We promise that Pro-Digital Technology can not only meet your needs, but also save more costs for you. Q: What is the minimum order quantity A: 1 piece. Q: What’s the delivery time? A: Normally 1-2 working days after PO and payment received. Q: How to ship to you? A: We provide DHL/ Fedex air express service and other logistics service, and also accept delivery to your designated forwarder. Q: What is the payment terms? A: 100% payment in advance. Q: What’s the payment methods? A: other trade assurance , PayPal, T/T, Western union
Want to Know more details about this product
