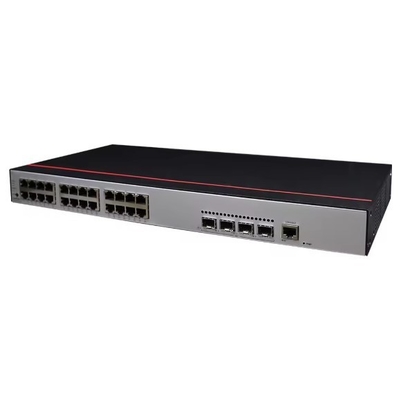

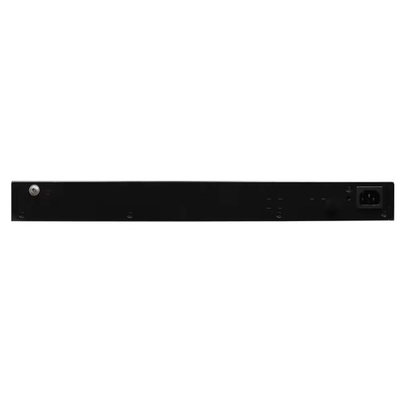

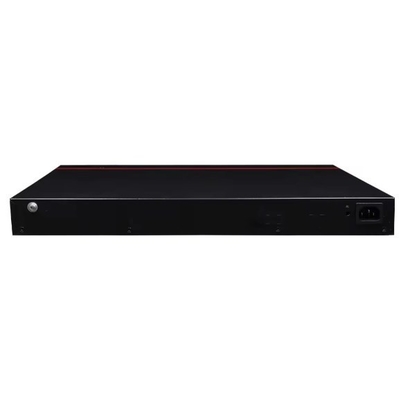

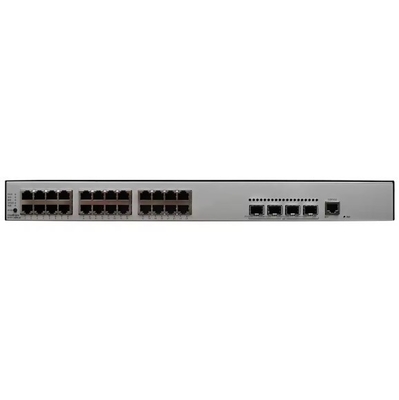

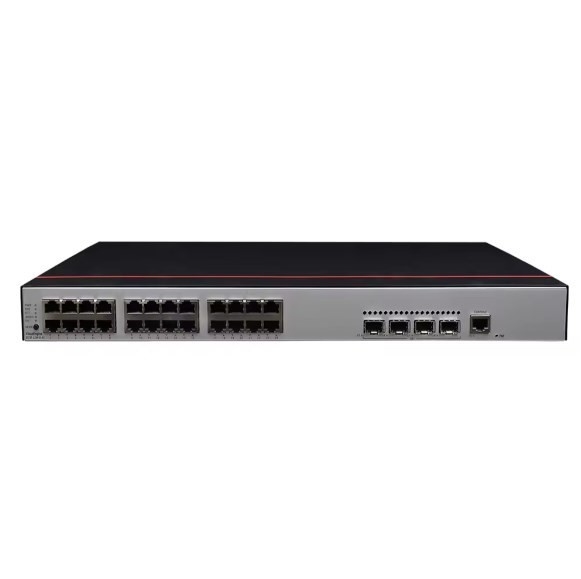

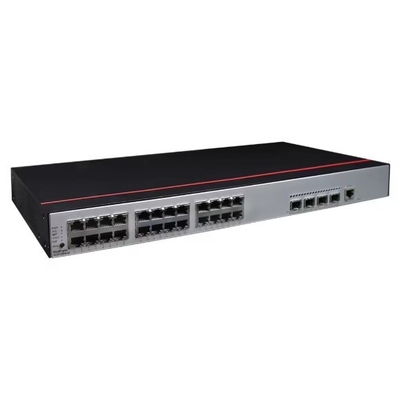

HW S5735-L24P4S-A1 CloudEngine S5700 Series Switches 24 10/100 / 1000Base-T Ethernet port POE network switch
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | HW |
| Model Number: | S5735-L24P4S-A1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pieces |
|---|---|
| Price: | $230.00 - $500.00/pieces |
| Delivery Time: | Normally 1-2 working days after PO and payment received |
| Payment Terms: | T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow |
|
Detail Information |
|||
| Private Mold: | NO, NO | Products Status: | Stock, Stock |
|---|---|---|---|
| Ports: | 24 | Transmission Rate: | 10/100/1000Mbps |
| Function: | LACP, POE, QoS, SNMP, Stackable, VLAN Support | Communication Mode: | Full-Duplex & Half-Duplex |
| Switch Capacity: | 336Gbps/3.36Tbps | Product Name: | S5735-L24P4S-A1 |
| Condition: | Brand-new | PoE Ports: | 24 Port Support PoE |
| Packet Forwarding Volume: | 51/126Mpps | Storage Temperature: | -40°C~+70°C |
| Size: | H43.6mm*W442mm*D420mm | Warranty: | 1 Year |
Product Description
Overview
Main parameters Product Type 10 Gigabit Ethernet Switch There are three layers of applications Transmission rate of 1000 MBPS /10000/10/100 MBPS error correction The backplane bandwidth is 2.56Tbps/23.04Tbps The packet forwarding rate is 480Mbps MAC address table 288K Port parameters The number of ports is 26 Port description 24 10GE SFP+ Two 40GE QSFP+ Functional featuresFunctional features The stack function can be stacked VLAN supports 4K VLans Guest VLAN and Voice VLAN are supported Support VLAN based on MAC/ protocol /IP subnet/policy/port 1:1 and N:1 VLAN Mapping functions are supported Supports basic, flexible QinQ functionality QOS supports limiting the rate at which a port can receive and send packets Support for packet redirection It supports port-based traffic supervision, supports two-speed three-color CAR function, and supports eight queues per port WRR, DRR,
SP, WRR+SP, DRR+SP queue scheduling algorithms are supported Support for WRED
802.1p and DSCP priority relabeling of packets is supported It supports L2 (Layer 2) -L4 (Layer 4) packet filtering function,
which provides packet filtering function based on source MAC address, destination MAC address, source IP address, destination IP address, TCP/IP protocol source/destination port number, protocol and VLAN Queue-based rate limiting and port shaping functions are supported Multicast management supports layer 2 static multicast MAC Support MAC mode forwarding IGMP Snooping and quick leave mechanisms are supported Supports multicast VLAN MLD Snooping is supported IGMP Proxy is supported Supports controlled multicast Port-based multicast traffic statistics
SP, WRR+SP, DRR+SP queue scheduling algorithms are supported Support for WRED
802.1p and DSCP priority relabeling of packets is supported It supports L2 (Layer 2) -L4 (Layer 4) packet filtering function,
which provides packet filtering function based on source MAC address, destination MAC address, source IP address, destination IP address, TCP/IP protocol source/destination port number, protocol and VLAN Queue-based rate limiting and port shaping functions are supported Multicast management supports layer 2 static multicast MAC Support MAC mode forwarding IGMP Snooping and quick leave mechanisms are supported Supports multicast VLAN MLD Snooping is supported IGMP Proxy is supported Supports controlled multicast Port-based multicast traffic statistics
Specification
|
Product Code
|
S5735-L24P4S-A1
|
|
Fixed ports
|
24 x 10 Gig SFP+, 6 x 40/100 Gig QSFP28
|
|
Dimensions (W x D x H)
|
442 mm x 420 mm x 43.6 mm
|
|
Ports
|
24
|
|
Transmission Rate
|
10/100/1000Mbps
|
|
Function
|
LACP, QoS, POE, SNMP, Stackable, VLAN Support
|
|
Communication Mode
|
Full-Duplex & Half-Duplex
|
|
Chassis height(U)
|
1U
|
|
Input voltage
|
• AC Power
- Rated AC voltage: 100V to 240V AC; 50/60 Hz - Max. AC voltage: 90V to 290V AC; 45–65 Hz • DC Power - Rated DC voltage: –48V~–60V - Max. DC voltage:-38.4V DC~-72V DC |
|
Input current
|
AC 600W:Max 8A
DC 1000W:Max 30A |
|
Flexible Networking
|
On-demand port rate based on the RTU license and flexible upgrade
|
|
Maximum power consumption
|
274W
|
|
Minimum power consumption
|
97W
|
