xFusion Server 1288H V5 Intel Xeon Server 2.1GHz 43.5 Hot sale
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | Xfusion |
| Model Number: | 1288H V5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $1,000.00 - $2,500.00/pieces |
| Delivery Time: | Normally 1-2 working days after PO and payment received |
| Payment Terms: | T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow |
|
Detail Information |
|||
| Private Mold: | NO | Products Status: | Stock |
|---|---|---|---|
| Type: | Rack | Processor Main Frequency: | 2.1GHz |
| Processor Type: | Intel Xeon | Product Name: | FusionServer 1288H V5 |
| Status: | Stock | Model: | 1288H V5 |
| MOQ: | 1 PCS | Processor: | Intel Xeon |
| Warranty: | 3 Years | Dimensions (H X W X D): | 43.5 Mm X 447 Mm X 790 Mm |
Product Description
Product Intrduction

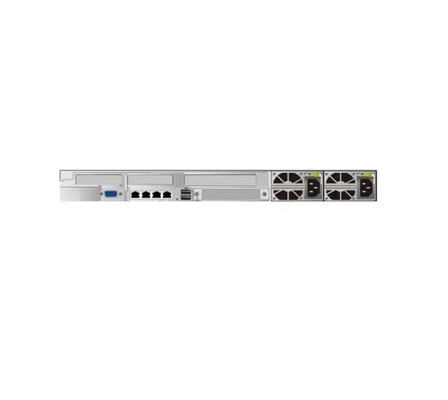

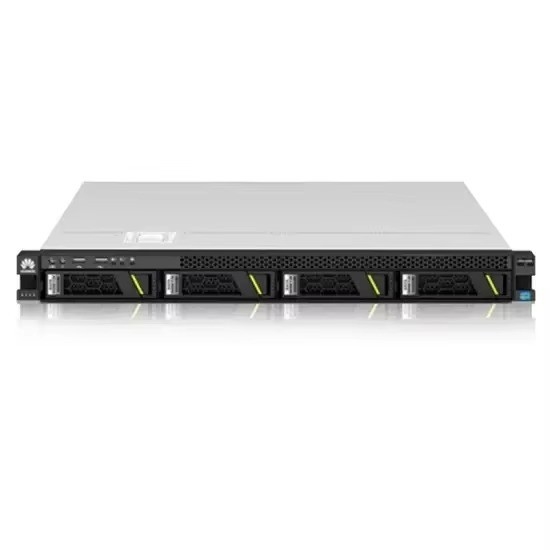

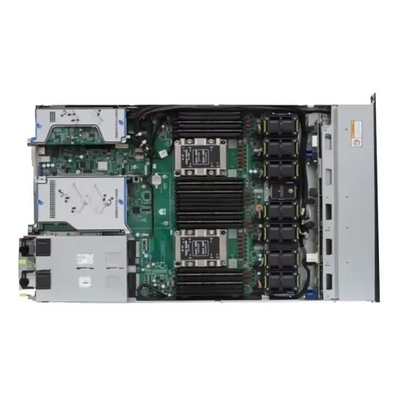

FusionServer 1288H V5
The FusionServer 2288H V5 is an a 2U, 2-socket rack server. FusionServer 2288H V5 has been verified by Intel as an Intel® Select Solution for NFVI and it supports the configuration of over 100 types of resources with just one model, flexibly meeting the hardware resource requirements of diverse workloads. It is an ideal choice for diverse applications, such as cloud computing, virtualization, databases, HPC, and big data processing.
|
MODEL
|
FusionServer 1288H V5
|
|
Form Factor
|
1U, 2-socket rack server
|
|
Processors
|
1 or 2 1st Generation Intel® Xeon® Scalable processors (3100/4100/5100/6100/8100 series), up to 205 W
1 or 2 2nd Generation Intel® Xeon® Scalable processors (3200/4200/5200/6200/8200 series), up to 205 W |
|
Memory
|
24 DDR4 DIMM slots, 2933 MT/s; up to 12 Intel® Optane™ PMem modules (100 series), 2666
|
|
Local Storage
|
Supports hot-plug hard drives and the following configuration options:
* 10 x 2.5-inch hard drives (6–8 NVMe SSDs and 2–4 SAS/SATA drives, with a total number of 10 or less) * 10 x 2.5-inch SAS/SATA/SSDs (2–4 NVMe SSDs and 6–8 SAS/SATA HDDs, with a total number of 10 or less) * 10 x 2.5-inch SAS/SATA/SSDs * 8 x 2.5-inch SAS/SATA hard drives * 4 x 3.5-inch SAS/SATA hard drives Flash storage: * 2 M.2 SSDs |
|
RAID Support
|
RAID 0, 1, 10, 5, 50, 6, or 60
Configured with a supercapacitor for power-off protection for the cache (optional) RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration |
|
Network Ports
|
LOM: 2 x 10GE + 2 x GE ports
Flexible NIC: 2 x GE, 4 x GE, 2 x 10GE, 2 x 25GE, or 1/2 x 56G FDR IB ports |
|
PCIe Expansion
|
Up to 5 PCIe 3.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC
|
|
Power Supply
|
2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options:
* 550W AC Platinum PSUs * 900W AC Platinum/Titanium PSUs * 1,500W AC Platinum PSUs * 1,500W 380V HVDC PSUs * 1,200W -48V to -60V DC PSUs |
|
Management
|
* Huawei iBMC integrates one dedicated management GE network port to provide comprehensive management features such as fault
diagnosis, automated O&M, and hardware security hardening. * iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC KVM; supports CD-free deployment and the Agentless feature, simplifying management. * (Optional) Configured with the Huawei FusionDirector management software to provide advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling smart and automatic entire-lifecycle management. |
|
Operating Temperature
|
5ºC to 45ºC (41ºF to 113ºF), and ASHRAE A3 and A4 compliant
|
|
Dimensions (H x W x D)
|
Chassis with 3.5-inch hard drives: 86.1 mm x 447 mm x 748 mm (3.39 in. x 17.60 in. x 29.45 in.)
Chassis with 2.5-inch hard drives: 86.1 mm x 447 mm x 708 mm (3.39 in. x 17.60 in. x 27.87 in.) |
