Stock and Sales Promotion for FusionServer 1288H V6 Intel Xeon 1U Rack Server
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | Xfusion |
| Model Number: | 1288H V6 |
Payment & Shipping Terms:
| Price: | $1,200.00 - $2,500.00/pieces |
|---|---|
| Delivery Time: | Normally 1-2 working days after PO and payment received |
| Payment Terms: | T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow |
|
Detail Information |
|||
| Private Mold: | NO | Products Status: | Stock |
|---|---|---|---|
| Type: | Rack | Processor Main Frequency: | 2.1GHz |
| Processor Type: | Intel Xeon | Product Name: | FusionServer 1288H V6 |
| Status: | Stock | Model: | 1288H V6 |
| Form Factor: | 1U Rack Server | MOQ: | 1 PCS |
| Processor: | Intel Xeon | Warranty: | 3 Years |
| Dimensions (H X W X D): | 43.5 Mm X 447 Mm X 790 Mm | ||
Product Description
Product Intrduction
FusionServer 1288H V6
There are many other kinds of configuration in stock , please contact what configuration you need . There are more than 90 million
inventory in warehouse , welcome to visit !
inventory in warehouse , welcome to visit !

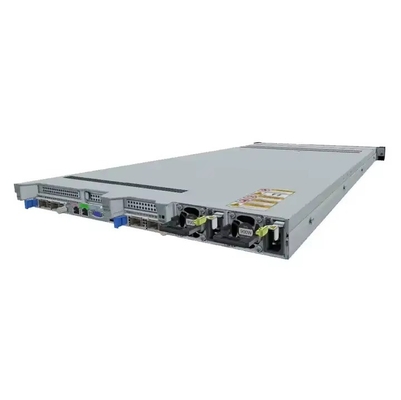

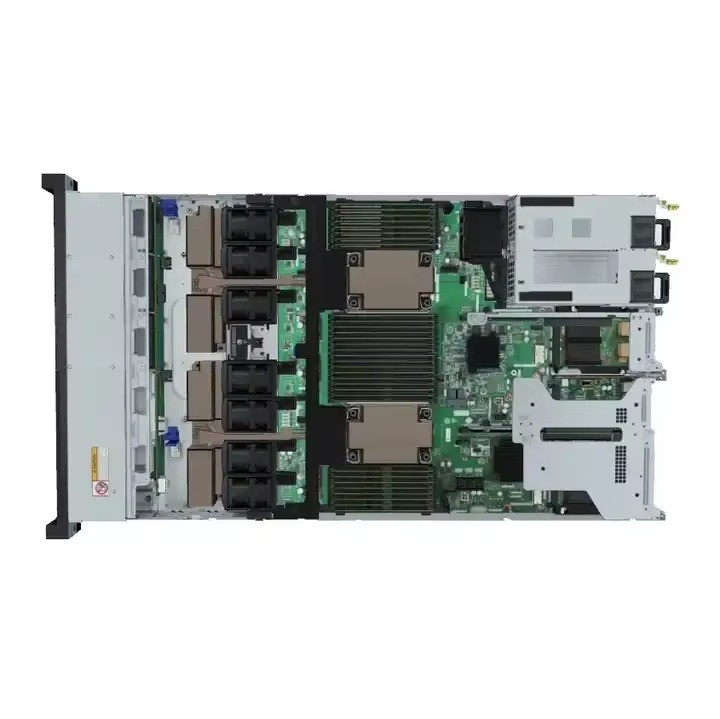

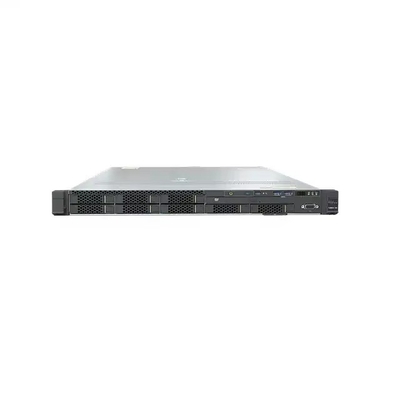

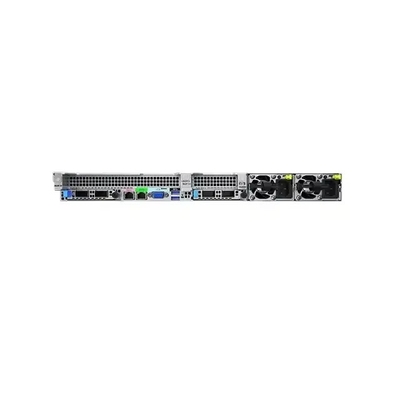

The FusionServer 1288H V6 is a 1U 2-socket rack server. It improves space utilization for data centers and is ideal for high-density deployment scenarios for workloads such as cloud computing, virtualization, high-performance computing (HPC), and big data processing.
The 1288H V6 is configured with two Intel®Xeon®Scalable processors and provides up to 32 DDR4 DIMMs, and 4 x3.5-inch or 10 x 2.5-inch local storage resources (configurable with 4 or 10 NVMe SSDs). It incorporates patented technologies,such as Dynamic Energy Management Technology (DEMT) and Fault Diagnosis & Management (FDM), and integrates FusionDirector software for entire-lifecycle management, helping customers drive down operating expense (OPEX) and improve return on investment (ROI).
MODEL | FusionServer 1288H V6 |
Form Factor | 1U rack server |
1U rack server | One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), thermal design power (TDP) up to 270 W |
Chipset | Intel C621A |
Memory | 32 DDR4 DIMMs, up to 3200 MT/s; 16 Optane™ PMem 200 series, up to 3200 MT/s |
Local Storage | Supports various drive configurations and hot swappable: • 8 to 12 x 2.5-inch SAS/SATA/SSD drives • 10 x 2.5-inch drives (6–10 NVMe SSDs and 0–4 SAS/SATA drives, with a total number of 10 or less) • 10 x 2.5-inch drives (2–4 NVMe SSDs and 6–8 SAS/SATA drives, with a total number of 10 or less) • 4 x 3.5-inch SAS/SATA/SSD drives Supports flash storage: • Dual M.2 SSDs |
RAID Support | Supports RAID 0, 1, 10, 5, 50, 6, or 60, optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration. |
Network | Provides expansion capability of multiple types of networks. Provides the OCP 3.0 network adapter. The two FlexIO card slots support two OCP 3.0 network adapter respectively, which can be configured as required. Supports the hot swap function. |
PCIe Expansion | Provides six PCIe slots, including one PCIe slot dedicated for RAID controller card, two FlexIO card slots dedicated for OCP 3.0 network adapters, and three PCIe 4.0 slots for standard PCIe cards. |
Fan Modules | Seven hot-swappable counter-rotating fan modules in N+1 redundancy mode |
Power Supply | Two hot-swappable PSUs in 1+1 redundancy mode. Supported options include: • 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC) • 1500 W AC Platinum PSUs 1000 W (input: 100 V to 127 V AC) 1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC) • 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC) • 1200 W –48 V to –60 V DC PSUs (input: –38.4 V to –72 V DC) • 2000 W AC Platinum PSUs 1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC) 2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC) |
Management | The BMC chip integrates one dedicated Gigabit Ethernet (GE) management port to provide comprehensive management functions such as fault diagnosis, automated O&M, and hardware security hardening. • The BMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management user interface based on HTML5/VNC KVM; supports CD-free deployment and Agentless for smart and simplified management. • (Optional) Configured with the FusionDirector management software to provide advanced management functions such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling automatic management throughout the lifecycle |
Operating Systems | Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle Linux, Ubuntu, Debian, openEuler, etc |
Security Features | Supports power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security panel, secure boot, and cover opening detection. |
Operating Temperature | 5°C to 45°C (41°F to 113°F) (ASHRAE Classes A1 to A4 compliant) |
Certifications | CE, UL, FCC, CCC, VCCI, RoHS, etc |
Installation Kit | Supports L-shaped guide rails, adjustable guide rails, and holding rails. |
Dimensions (H x W x D) | Chassis with 3.5-inch drives: 43.5 mm x 447 mm x 790 mm (1.71 in. x 17.60 in. x 31.10 in.) Chassis with 2.5-inch drives: 43.5 mm x 447 mm x 790 mm (1.71 in. x 17.60 in. x 31.10 in.) |
Company Profile
Pro-Digital Technology Limited,a company based in Beijing is the cooperative agent of five major brands ,the main business goes in selling servers, storages, workstations ,switches, routers, firewalls, network modules, processors, hard disks, memories, wireless Aps, IP phones.

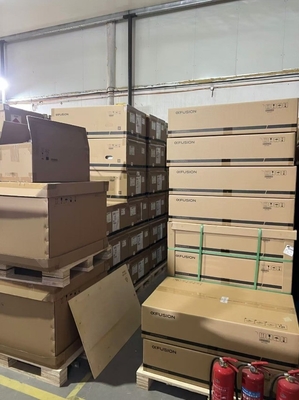

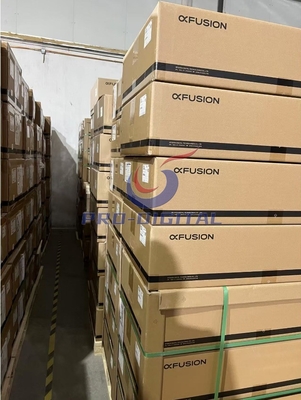

We can guarantee to provide 100% original equipment. We hold an excellent execution team, fast delivery and competitive prices are our strengths. We have 3 large stocks cover an area of 1,500 square meters. Cooperative partners of company range in various industries all over the world. Company insists the business principles of customers supreme, services prior, reciprocity and mutual benefit and standing with these principles we strengthen the connection and cooperation with various industries, and in the way of closely communicating with customers and exploring a wide trading market, we provide customer a good and assured shopping process, which save costs and time for customers. We sincerely welcome you to join us!
Q: Why choose us? A: First, quality assurance: We are the agent of five brands, ensuring to provide 100% original authentic products and Competitive Price with best service Second, fast delivery: We have 3 large stocks over than 1500 square meter in Beijing, warehouse with good, prompt shipment arrangement. Third, After-sale service :We have a well-trained after-sales service team can provide strict quality control and considerate customer service, ensure complete customer satisfaction We promise that Pro-Digital Technology can not only meet your needs, but also save more costs for you. Q: What is the minimum order quantity A: 1 piece. Q: What’s the delivery time? A: Normally 1-2 working days after PO and payment received. Q: How to ship to you? A: We provide DHL/ Fedex air express service and other logistics service, and also accept delivery to your designated forwarder. Q: What is the payment terms? A: 100% payment in advance. Q: What’s the payment methods? A: other trade assurance , PayPal, T/T, Western union
Want to Know more details about this product
